Al-920 Mini Currency Value Counter Banknote Printing Machine

Basic Info

Packaging & Delivery

Product Description

Specification Features

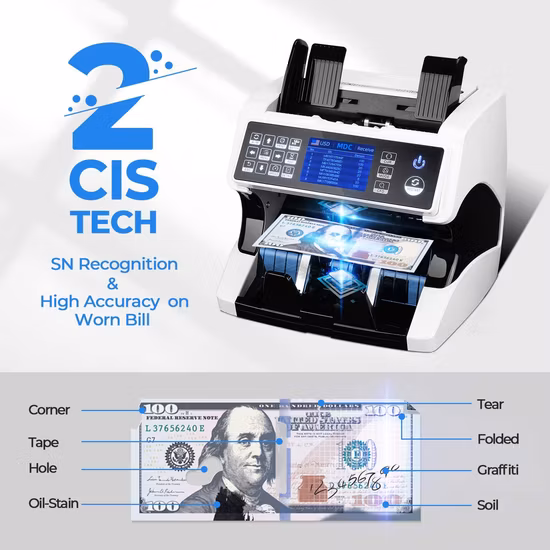

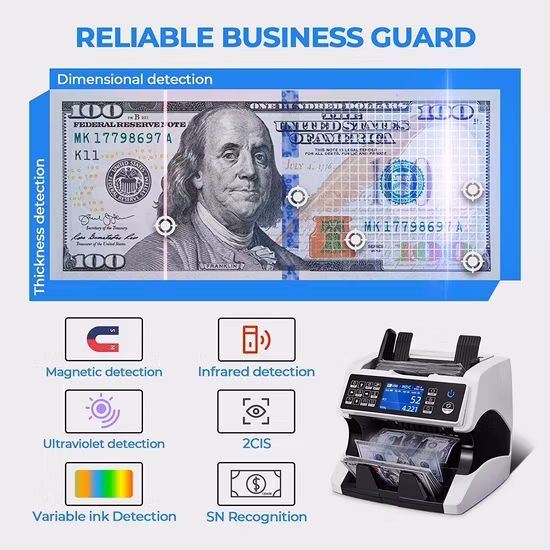

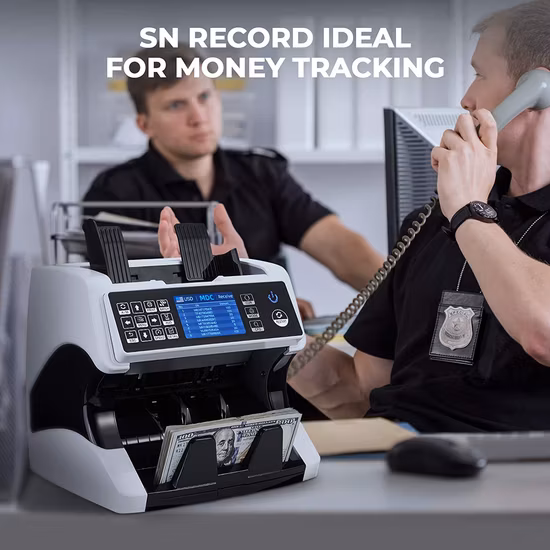

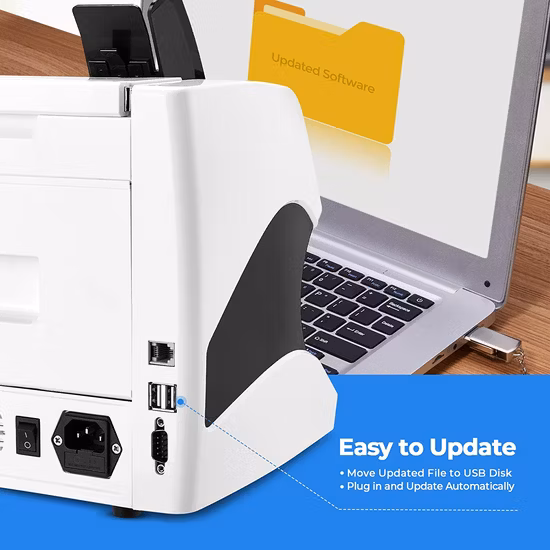

Features :1.Automatic start, stop and clear2.UV MG IR3.Dual CIS detection4.Batch function , Add function5.Self-checking function6.Automatic half-note, chained note, double-note detection7.Multi interface (USB,RS 232 LAN).8.Manual start counting mode9.Mix vlaue count for multi currencies and give detail report of each denomination 10.Serial number recognize for USD EUR GBP ect.11. Touch Keypad12.Auto currency recognise for first listed 5 currencies13.Up to 10 currencies14.Options:External display/Printer15.Openable back 16.3 detection levelsSpecification:Unit Dimensions: 28CM(W)*26CM(D)*27CM(H) / 11"(W)*10.2"(D)*10.6"(H)Unit Package:N.Weight: 6.5KGSG.Weight: 7.5KGSCounting Speed: 800/1000/1200/1500 notes/min for CNT mode, 800/1000 notes/min for SDC & MDC modesSize of Countable notes: Minimum 110x60 mm, Maximum 185x90 mmThickness 0.08~0.12 mm Feed system: Roller Friction SystemHopper Capacity: 400-500 notesStacker Capacity: 200 notesPower Supply: AC 100~240V ±10%, 50/60 HzCurrent: Maximum 1.8A (100~240 VAC)Power Consumption: <50 WattsAmbient Temperature: 0ºC~35ºC (Operating)Working Environment: -10ºC~60ºC (Stocking)Ambient Humidity: 20%~90% (no condensation)Connection Port: USB, RS232packing size :68*38*35cm(2pcs)Gross weight:15 kgs (2 pcs)

Introduction to key panel

Button MODE:Choose CNT mode (Count), SDC mode (Single Denomination Count) & MDC mode (Mixed Denomination Count).

Button CFD: Choose different Counterfeit Detection Sensitivity level

Button CUR: Show up the available currency names in your machine and press corresponding numeric button to select the currency you want.

Button BATCH: Switch on/off batch mode.

Button PRINT: When your value counter is connected with a printer, then in REPORT mode (press DETAIL to get in), press this PRINT button to print out the detail.

Button A/M: Choose Auto or Manual Start

Button ADD: The default function is to switch on/off ADD function

Button SPEED: The default function is to select different available counting speeds.

Button↑→ ↓←:When BATCH is on, then use ↑→ ↓←buttons to input the batch number. And in Menu to choose currency type.

Button menu: Enter in to Menu while in main interface,Password is 9999.

Button ESC: The default function is to clear the input or back to upper level.

Button RESTART: This button is used to start counting, or back to upper level in MENU.
